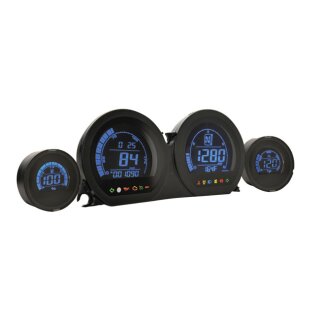

Plug & play replacement for the OEM instruments. Plug OEM connectors into instruments and install into the fairing. Ready! Dual display color option (red or blue) and 5 intensity levels for the digits and graphics in each individual instrument. Once the ignition is off, all instruments are completely black for a great custom look. This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge, and a 2" fuel gauge. - 12V DC - Speedometer: 0 to 299 km/h (0 to 199 mph) - Display refresh rate: <0.5 seconds - Overspeed warning setting: 30 to 299 km/h (19 to 199 MPH). When the set value is reached, the warning lamp lights up - Maximum speed record: 0 to 299 km/h (mph) - Odometer display range: 0 to 999.999 km/h (mph) - Tripmeter A/B: 0 to 9,999.9 km (miles) - Oil change interval: 8,000 to 900km / miles adjustable. Counts down as the number of km / miles increase. From 0 km/miles the warning light flashes and the device counts down to maximum minus 999 km/miles. Manual reset - Gear indicator: N, 1, 2, 3, 4, 5, 6 - Tachometer: 0 to 9,990 RPM. Displays per 10 RPM - Shift light: : 2,000~8,000 RPM, per 100 RPM adjustable. Light turns on when set RPM is reached - Engine temperature: 40 to 300 °C / 40 to 572 °F -Fuel Level Gauge Display Range: H-D Standard / Custom - Fuel level H-D Standard: LCD flashes as warning when fuel level resistance is greater than 211 ohms, and turns off when resistance is less than 187 ohms - Fuel level custom: LCD flashes as warning when fuel level resistance is below 20%, and turns off when fuel level is higher than 30% - Fuel tank volume setting: Off / 1.0 to 9.9 US gallons - Average fuel consumption: Off / liters per 100 km / km per liter / Miles per gallon (US specs) / Miles per gallon (UK specs) - Fuel 'remaining distance': 0 to 9.999 km (6.249 miles) - Fuel 'remaining distance': LCD shows 'LO RNG' and flashes as a warning when remaining range is less than 16 km (10 miles) - Clock: 12h / 24h - Oil Temperature Gauge: 0 to 400°F (32 to 248°C), displays per 1 F° (1 °C) - Maximum oil temperature (storage): 0 to 400°F (32 to 248°C) - Volt meter range: 8 to 18V - Brightness digits: 5 levels - Color digits / graphics: 2 colors, red or blue - Works from -10°C to 60°C - JIS D 0203 (S2) standard specified - Weight speedometer & tachometer: 286 gram - Weight oil temp.: 81 gram - Weight fuel gauge: 81 gram - Indicator lights: Turn signal (Green), Photometric sensing (No color), Oil (Red), Check Engine Light (Yellow), Cruise Control (Orange/Green), Immobilizer (Red), Water Temperature (Red), Warning Light (Yellow), High Beam (Blue), Fog Light (Yellow), ABS (Red)
