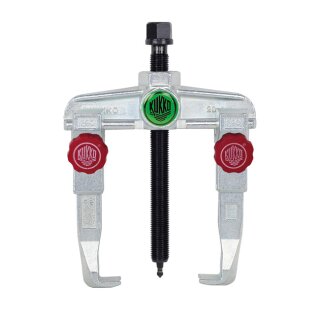

Kukko, gear puller with 2 quick adjusting arms. Regular

Artikelnummer: MCS950997
Hersteller:

173,95 €

Bei Lieferung nach Deutschland
inkl. 19% USt. ,
Lieferland ändern

Knapper Lagerbestand
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Stk

Beschreibung
Bewertungen

Regular size puller arms. Gear pullers with the 'quick adjusting arms' allow sliding the jaws along the cross-beam to the required diameter, between 70 and 140mm, for a straight pull. Optional 150mm 'jaw extensions' are available for additional jaw reach when required. Jaws can be reversed which allows both internal as external pulling actions. - Number Of Jaws: 2 - Build series: 20 - Puller arms look like: Drawing 1 - Spread (in mm): 30-90 - Depth (in mm): 100 - Spread Used Internal (in mm): 70-140 - Hex Drive (Male) (in mm): 17 - Maximum Load: 4500kg - Maximum Torque: 80Nm - Weight: 1.305kg - Space Below (in mm): 10 - Space Next To It (in mm): 31. Technologies used: - Switch: A two-sided spindle tip provides optimal adjustment of the spindle to the shaft - Glide & Fix: Improved geometry guarantees quick and easy movement of the jaws on the cross-beam - Armlock: Cross-legged jaws guarantee maximum stability for suspending the jaws in the slider - Quick Adjust: Knurls allow the jaws to be quickly released and moved on the cross-beam without the need for tools. Note: Optional/replacement quick adjusting pullers arms are separately available as 'regular', 'narrow' and 'extremely narrow' for direct replacement or to to fine-tune the puller to the specific task ahead. Note: Optional jaw extensions are available to extend the reach of the quick adjusting jaws. The extensions are interconnectible. Each jaw extension added is an additional 150mm reach.
